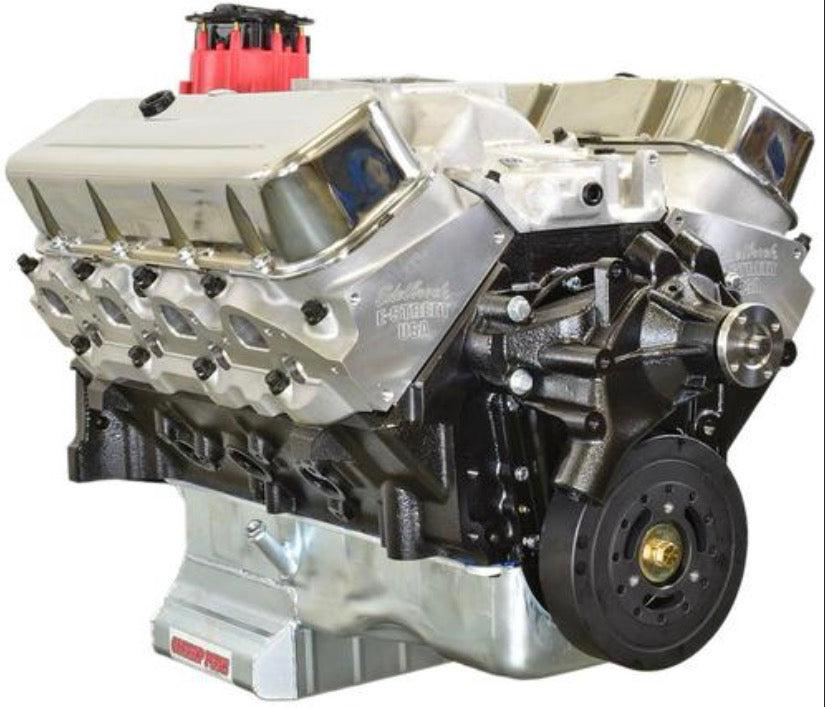

Wade Racing Performance 454 Big Block Chevrolet

Engine Specifications:

• HP: 525

• TQ: 550

• Block: OE block 1991-1995 Gen V 4 bolt main 1pc seal.

• Bore/Stroke: up to 4.310” x 4.000”

• Displacement: 454

• Crankshaft: OE Reground external balance

• Rods: OE powder metal 6.135”

• Pistons: Forged 9.9:1 compression

• Rings: Moly

• Camshaft: Hyd. roller

• Cam Specs: 225/235 @50 .595in/.601ex 112LSA

• Timing Chain: Double roller

• Cylinder Heads: Edelbrock aluminum E-street 110cc/290cc 2.19/1.88

• Rocker Arms: Billet aluminum 1.7 ratio

• Oil Pan: Rear sump

• Oil Pump: Melling high volume

• Balancer: PowerBond external balance 8” #PB1451-N

• Flexplate/Flywheel: Pioneer #FRA-321 external balance 168 tooth

• Intake Manifold: Edelbrock performer RPM dual plane #7161

• Distributor: HEI (Iron gear)

• Water Pump: OE long pump

  Recommended Components:

• Carburetor: Quick Fuel 780CFM vacuum secondary’s with electric choke #HR-780

• Fuel Pump: No mechanical fuel pump provision, must run an electric pump

• Spark Plugs: Autolite #3923

• Spark Plug Wires: 8mm

  Engine Info:

• Oil: Conventional / Non Synthetic 10W30 with Comp Cam zinc additive #159 for first 3000 miles

• Oil Filter: Wix or K&N per application

• Timing: 34-36 Degrees

• Spark Plug Gap: .035”

• Firing Order: 18436572

• Octane: 91+

• Stall Converter: 2200-2500

• Exhaust: 1 5/8 Headers

$600 Core Exchange.
